The negative pressure vacuum pneumatic conveying production line serves as the core equipment for automated conveying of powdery and granular materials in modern industry. Based on the aerodynamic negative pressure principle, it realizes fully enclosed, pollution-free and automatic material conveying. Widely applied in food, pharmaceutical, fine chemical, new energy, building material and other industries, it thoroughly solves the common problems of traditional manual and mechanical conveying, such as dust leakage, material loss, cross contamination and low efficiency, making it an essential supporting device for green intelligent manufacturing.
The production line adopts the negative pressure suction pneumatic conveying principle. Equipped with Roots vacuum pumps and jet vacuum pumps as the power core, the system continuously extracts air from pipelines and silos after startup, forming a stable negative pressure vacuum environment inside the conveying pipelines. Relying on the atmospheric pressure difference between the inside and outside of the pipelines, external air carries materials into the pipelines from the feeding port to form gas-solid two-phase flow, which transports materials at a constant speed to the terminal separation equipment to complete the whole material conveying process. Compared with positive pressure conveying, the negative pressure system operates under full negative pressure. Even if there are gaps in the equipment, only inward air inhalation occurs without dust leakage, delivering remarkable advantages in tightness and operational safety.

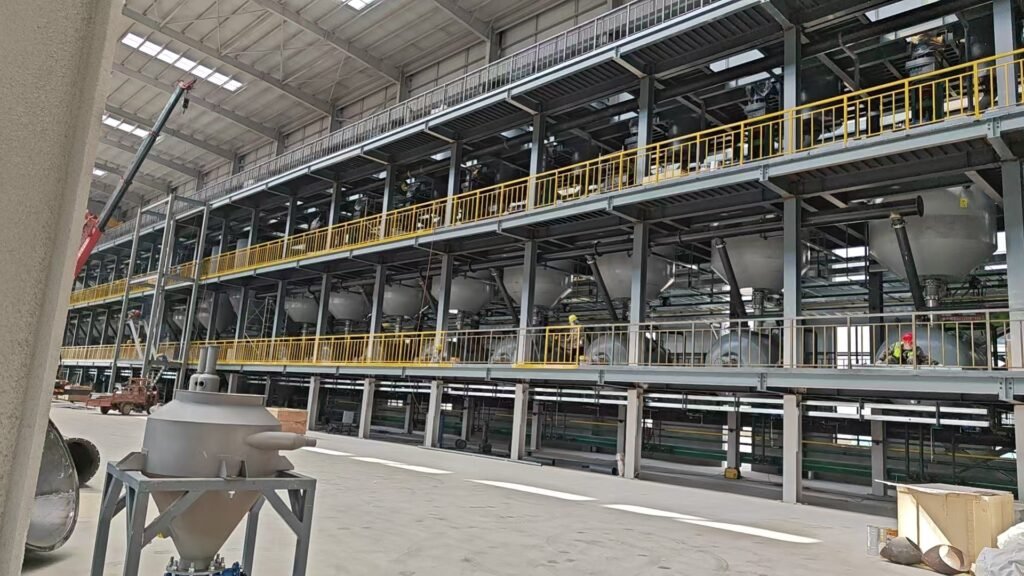

Featuring a compact structure and high integration, the complete production line mainly consists of feeding devices, conveying pipelines, material separators, dust filtration and removal components, negative pressure power equipment, intelligent control systems and discharging mechanisms. The feeding device is adaptable to various feeding scenarios including bulk material piles, silos and packaging bags, supporting single-point or multi-point centralized feeding. Adopting seamless pipes, the conveying pipelines can be flexibly bent, overhead or ground-mounted to adapt to complex workshop layouts. The material separator realizes efficient separation of materials and airflow through centrifugal force and gravity, allowing purified materials to fall into the storage silo. The high-precision rear filter intercepts fine dust and prevents dust from entering the vacuum pump, which protects the power equipment and eliminates tail gas pollution.
The negative pressure vacuum pneumatic conveying production line has multiple core advantages. First, the fully enclosed conveying process produces no dust flying or material leakage, effectively improving the workshop production environment and meeting environmental protection standards. Meanwhile, it isolates toxic, flammable and easily oxidized materials from contact with ambient air, greatly improving production safety. Second, it boasts a high degree of automation. Equipped with an intelligent control system, it monitors operating conditions in real time through level sensors and pressure sensors, and automatically completes the whole process of feeding, conveying, discharging and shutdown without manual intervention, effectively reducing labor costs and improving conveying efficiency. Third, it achieves an extremely low material loss rate. The low-speed negative pressure conveying avoids particle breakage and powder agglomeration, ensuring material integrity and meeting the high-precision material conveying requirements. In addition, the equipment features low operating noise and simple maintenance. With no mechanical transmission parts in the pipelines, it has a low failure rate and long service life.
With strong adaptability in practical application, the production line can convey various bulk materials such as flour, starch, pharmaceutical raw materials, positive and negative electrode materials for lithium batteries, plastic particles, chemical powder and grain crops. It supports both short-distance intra-workshop material transfer and long-distance cross-area material conveying, and allows simultaneous feeding of multiple devices to meet the needs of large-scale and continuous production.
With the intelligent and green upgrading of modern industry, negative pressure vacuum pneumatic conveying production lines are continuously optimized and iterated. Integrated with new technologies such as IoT intelligent monitoring, variable-frequency energy-saving control and precise dust removal, the system realizes energy consumption optimization, fault early warning and data traceability. It has become standard equipment for automated powder material production, providing solid support for quality improvement, cost reduction and environmental upgrading in industrial production.
