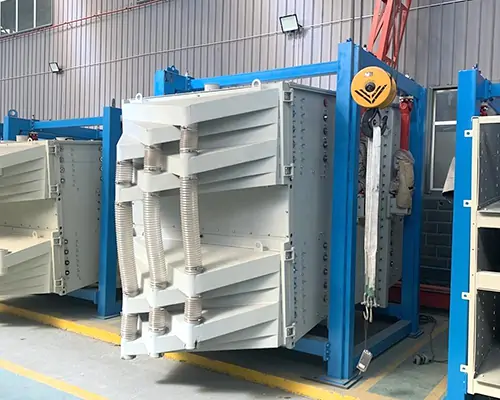

Gyratory Screen
Square swinging gyratory screen is a kind of screen body to do horizontal circumferential motion of imitation artificial screening equipment. The equipment produced by the manufacturer of the square swing screen can be changed according to the number and combination of various mesh layers. Because of the stable operation of its working state does not produce up and down vibration, so that the product has the technical characteristics of large output, high precision, long screen life, low failure rate.
- Model: FYBS-1536 , FYB-S2040
- Material: Carbon Steel
- Mesh Size: 2-300 mesh
- Layers: 1-10 layers
- Capacity: 500kg – 13 Tons/hour
Product Introduction
Fully enclosed structure, in line with the environmental protection requirements of the working environment; There is almost no vertical impact load on the ground foundation, making this series of screeners have a wider market application environment. It is widely used in chemical industry, metallurgy, metal powder, mineral powder, aluminum powder, iron powder, food, salt, sugar, abrasive, feed, plastics and other industries. Especially suitable for heavy alkali, salt, resin, compound fertilizer, large and small particle urea, feed, reduced iron powder, zirconia, ceramite, barite, machine sand, quartz sand, etc.

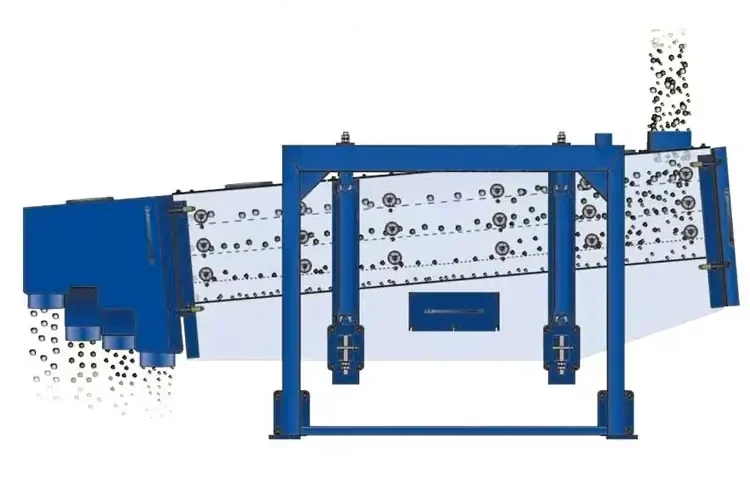

Working principle
Gyratory Screen can be seen from the motion track of the swinging screen box, the square swinging screen is also known as reciprocating screen, the vibration force generated by the driving device is about the fixed axis, the direction of a certain rule of change of inertia force, its essence is the reciprocating inertia force formed by the rotation of the eccentric wheel around the fixed axis. Screen body and horizontal plane has 4.5°-5.5 inclination Angle, so that less than mesh material quickly through the screen to the lower screen surface.
Application of Gyratory Screen
- Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
- Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
- Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additives, etc.
- Metallurgy and mining industry: quartz sand, ore, meteorite, garnet, etc.
- Mechanical industry: casting sand, powder metallurgy, electromagnetic material, and metal powder, etc.
Emery
Calcium Carbonate
Ceramic sand
cork powder
Industry salt
Metal silicon powder
Plastic particles
Silica Sand
Specifications of Gyratory Screen
| Model | Screen surface L*W(mm) | Screen box stroke(mm) | Power(kw) | Layer | Single layer weight(kg) |
| FYB1021 | 1000*2100 | 25-60 | 3 | 43833 | 980 |
| FYB1030 | 1000*3000 | 25-60 | 3 | 43833 | 1200 |
| FYB1236 | 1200*3600 | 25-76 | 4 | 43833 | 1850 |
| FYB1530 | 1500*3000 | 25-76 | 5.5 | 43833 | 2050 |
| FYB1536 | 1500*3600 | 25-76 | 5.5 | 43833 | 2410 |
| FYB1836 | 1800*3600 | 25-76 | 7.5 | 43833 | 3880 |
| FYB2050 | 2000*5000 | 25-92 | 11 | 43833 | 5500 |
